Rifat Aluminum Packaging Limited
Products & Solutions

Precision packaging, built for critical products.

A focused portfolio of aluminum-based flexible packaging solutions, engineered to protect what matters.

Product · 01
ALU-ALU Bottom Foil
5 layers
Product · 02
PVDC Rigid Film
2 layers
Product · 03
ALU Blister Foil (Top)
3 layers
Product · 04
Aluminium Strip Foil
3 layers
ALU-ALU Bottom Foil
01 · Overview
HSM DL-1300A Dry Lamination Line-2
Produced on · HSM DL-1300A Dry Lamination Line-2
Product · 01

ALU-ALU Bottom Foil.

Five Layers. One Barrier.

A 143-micron cold-formable laminate that protects the world's most sensitive pharmaceuticals — the gold standard for hygroscopic and light-sensitive drugs.

Nominal Build
25 microns OPA + 4 microns adhesive + 50 microns ALU + 4 microns adhesive + 60 microns PVC = 143 microns.
Layer Structure
  1. 01
    Oriented Nylon (OPA)
    25 microns · outer face · puncture resistance
  2. 02
    Lamination Adhesive
    4 microns · polyurethane · OPA ↔ ALU
  3. 03
    Aluminium Foil
    50 microns · pharma grade · absolute barrier
  4. 04
    Lamination Adhesive
    4 microns · polyurethane · ALU ↔ PVC
  5. 05
    Rigid PVC Film
    60 microns · inner face · heat-sealable

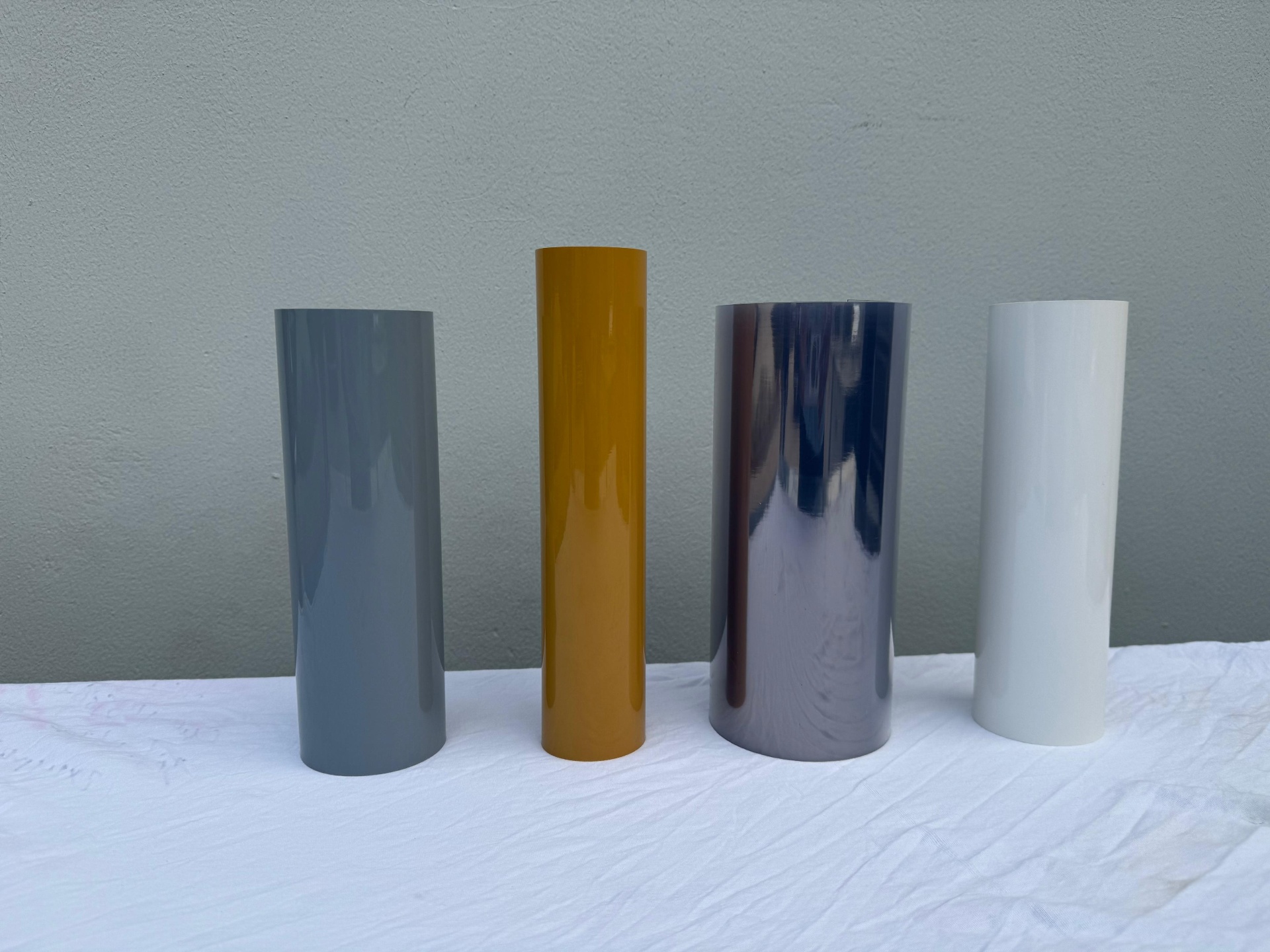

PVDC Rigid Film
02 · Overview
Suddha PVDC Coating Machine
Produced on · Suddha PVDC Coating Machine
Product · 02

PVDC Rigid Film.

Two Layers. Superior Moisture Barrier.

Rigid PVC coated with a PVDC emulsion — the standard high-barrier format for push-through blister packs. Coat weight tuned to each drug's stability profile.

Nominal Build
250–350 microns rigid PVC + 40–120 microns PVDC emulsion · fully customizable.
Layer Structure
  1. 01
    PVC Rigid Film
    250–350 microns · thermoformable substrate
  2. 02
    PVDC Emulsion Coating
    40–120 microns · moisture + oxygen barrier
ALU Blister Foil (Top)
03 · Overview

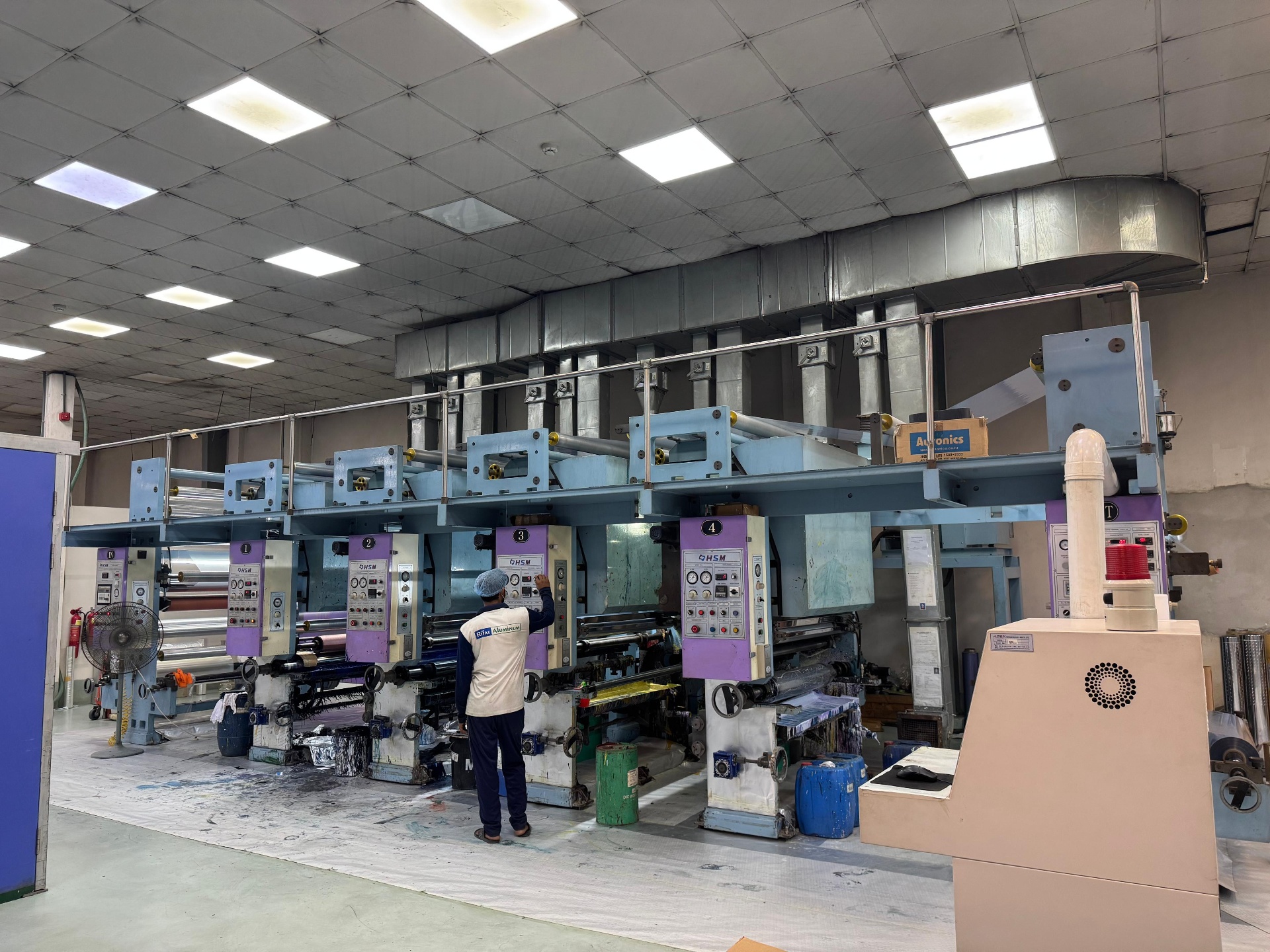

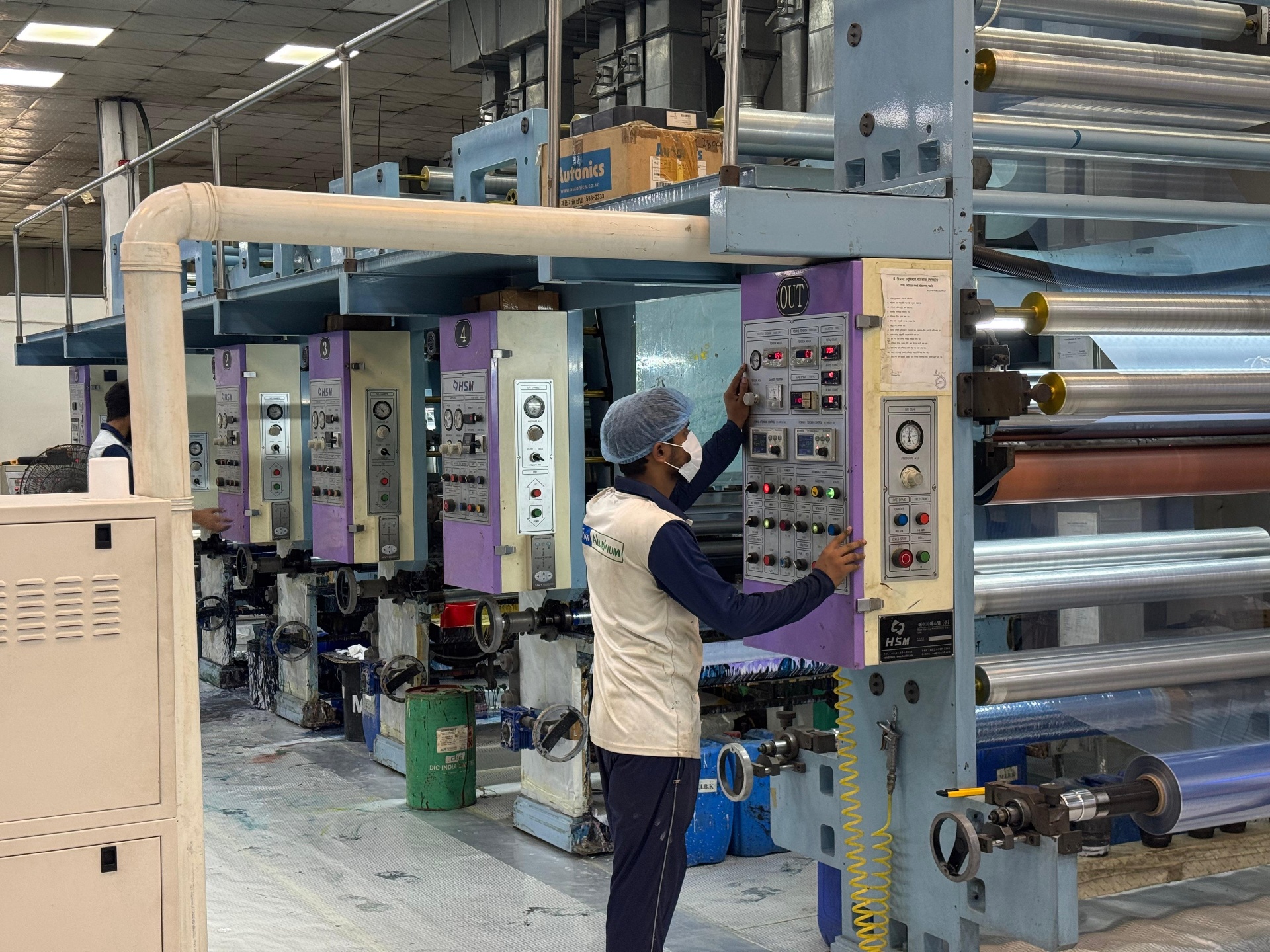

4 Color Rotogravure Printing Machine
Produced on · 4 Color Rotogravure Printing Machine
Product · 03

ALU Blister Foil (Top).

Three Layers. Print, Seal, Protect.

The printed lidding foil that seals every blister — pharma-grade aluminium with full-colour rotogravure print and a heat-seal lacquer bonded cleanly to PVC or PVDC.

Nominal Build
Print layer + 20–30 microns ALU + 6–8 gsm heat-seal lacquer · fully customizable.
Layer Structure
  1. 01
    Aluminium Foil
    20–30 microns · pharma grade · push-through
  2. 02
    Printed Layer
    Rotogravure · up to 8 colours · customer artwork
  3. 03
    Heat-Seal Lacquer
    6–8 gsm · PVC / PVDC compatible
Aluminium Strip Foil
04 · Overview
Dry Lamination Line-1
Produced on · Dry Lamination Line-1
Product · 04

Aluminium Strip Foil.

Two Layers. Total Enclosure.

A duplex laminate of printed aluminium and LDPE — the standard format for four-side-sealed strip packs. Each dose individually enclosed and sealed on all four edges.

Nominal Build
Printed layer + 30 microns ALU + 50–60 microns LDPE · fully customizable.
Layer Structure
  1. 01
    Aluminium Foil
    30 microns · outer · full barrier
  2. 02
    Printed Layer
    Rotogravure · customer artwork
  3. 03
    LDPE Film
    50–60 microns · inner · heat-seal
6,000
Tons / Year
150k
Sq Ft Plant
26
Day Lead Time
24/7
Production
Manufacturing

From raw aluminum to finished roll — in six stages.

Every product on this page moves through the same controlled process at our Gazipur plant.

  1. 01
    Raw Material

    Sourcing and inspection of aluminum and laminate materials.

  2. 02
    Precision Processing

    Controlled processing of raw materials into working stock.

  3. 03
    Manufacturing

    Technology-driven manufacturing on modern production lines.

  4. 04
    Quality Inspection

    In-process and final inspection against specification.

  5. 05
    Packaging

    Protective packaging for safe transport and storage.

  6. 06
    Delivery

    Reliable delivery to customers across Bangladesh and beyond.

Let's build a reliable supply partnership.

Talk to our team about your packaging requirements, technical specifications, production volumes, and supply needs.

Get in touch
